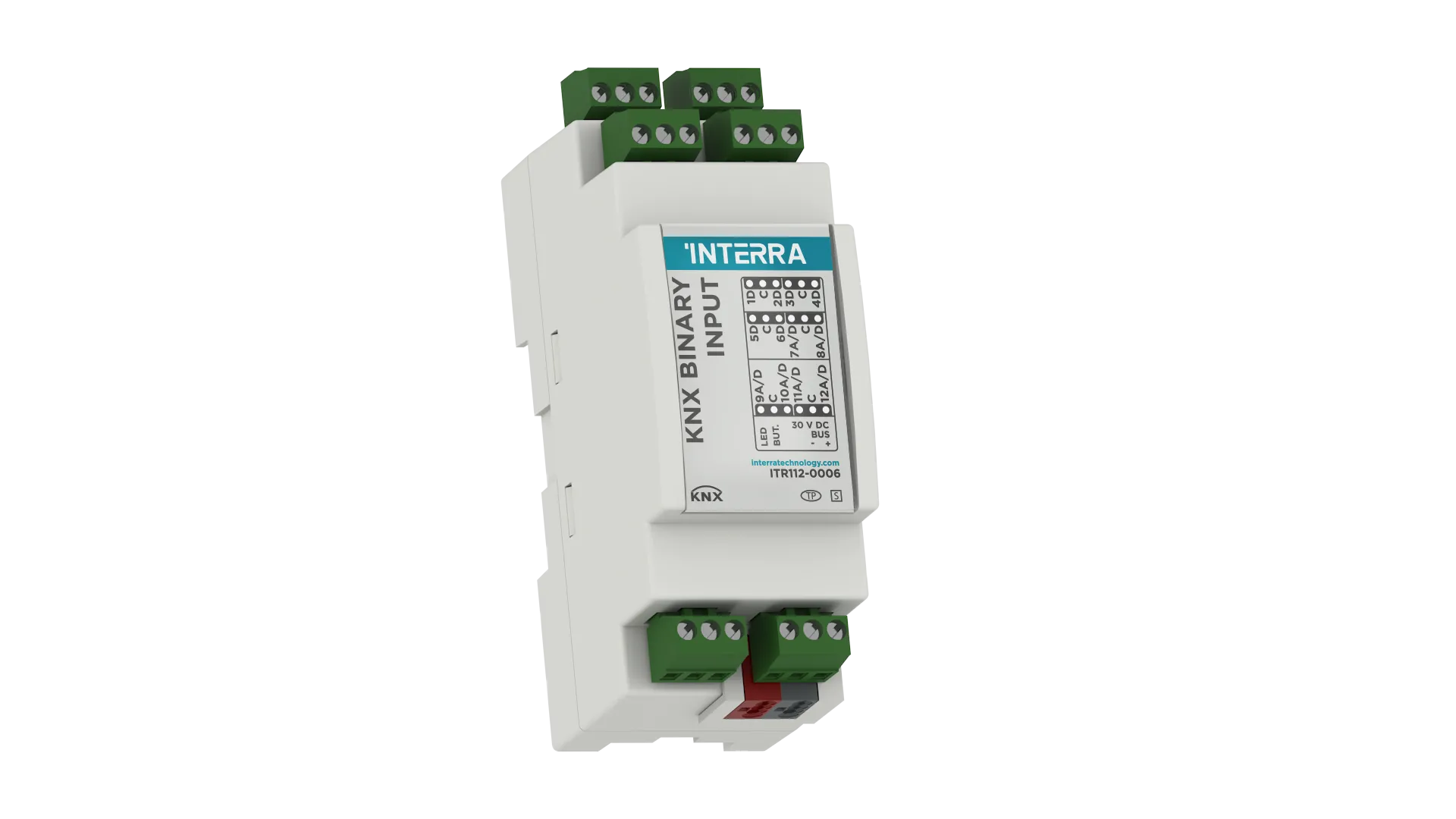

KNX Binary Input is used to interface the contacts to KNX bus substructure such as push buttons, switches etc. to make them communicating devices. X binary/analog inputs configurable as a temperature probe. Each analog input can be used by 6 thermostat channels.
CONFIGURATION AND FEATURES:
The complete configuration of the device is performed via ETS5 or higher. Depending on ETS configuration and settings, the product feature will be different. Available functions are:
Input Functions
• Thermostat Function
• Switch Sensor
• Switch / Dimming Sensor
• Shutter Sensor
• Value / Forced Operatio
• Control Scene
• RGB Colour Control
• RGBW Control
• Mode Selection
• Command Sequence
• Counter
Logic Functions
Internal Inputs:
• 6 binary input
External Inputs:
Binary Value (adj. size) (max. 3 selectable)
• Movement
• Temperature
• Brightness
Output Types (max. 5 selectable):
• Switch
• Absolute Dim
• Shutter
• Alarm
• Sequence
• Scene Number
• String
• Threshold
