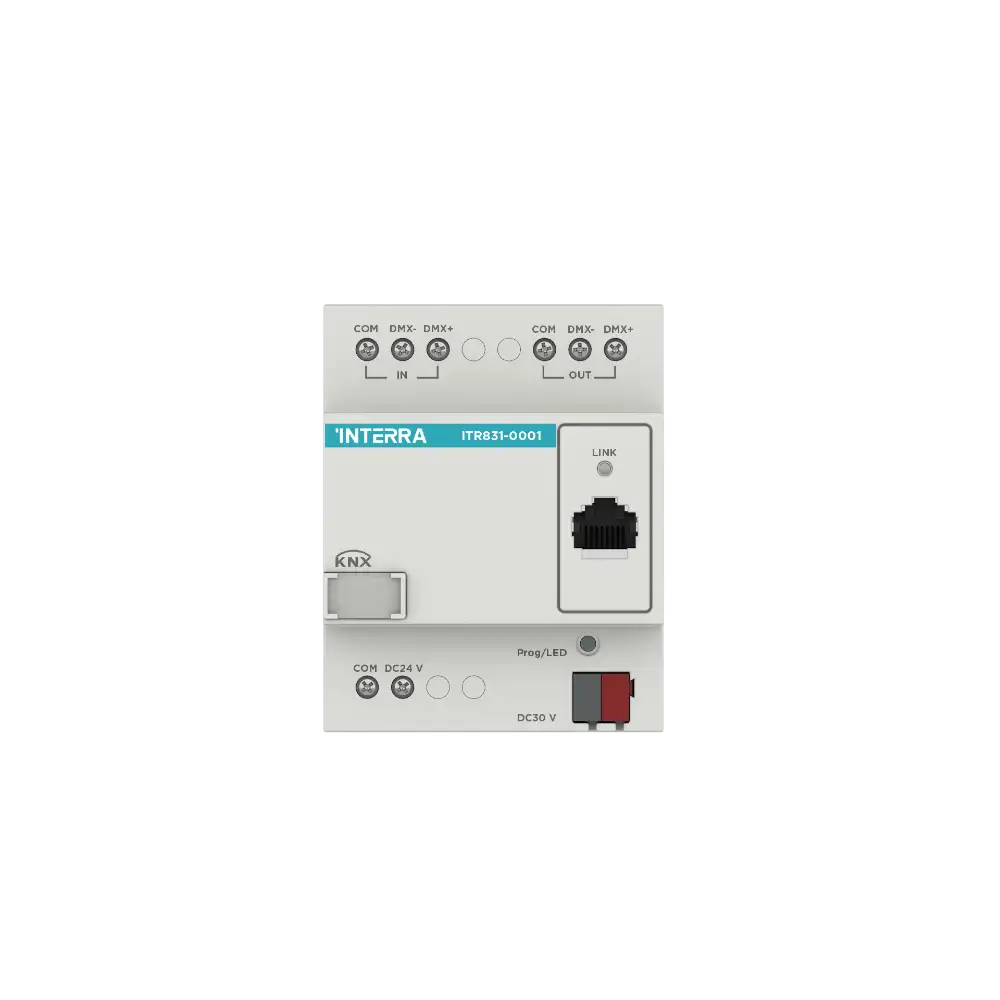

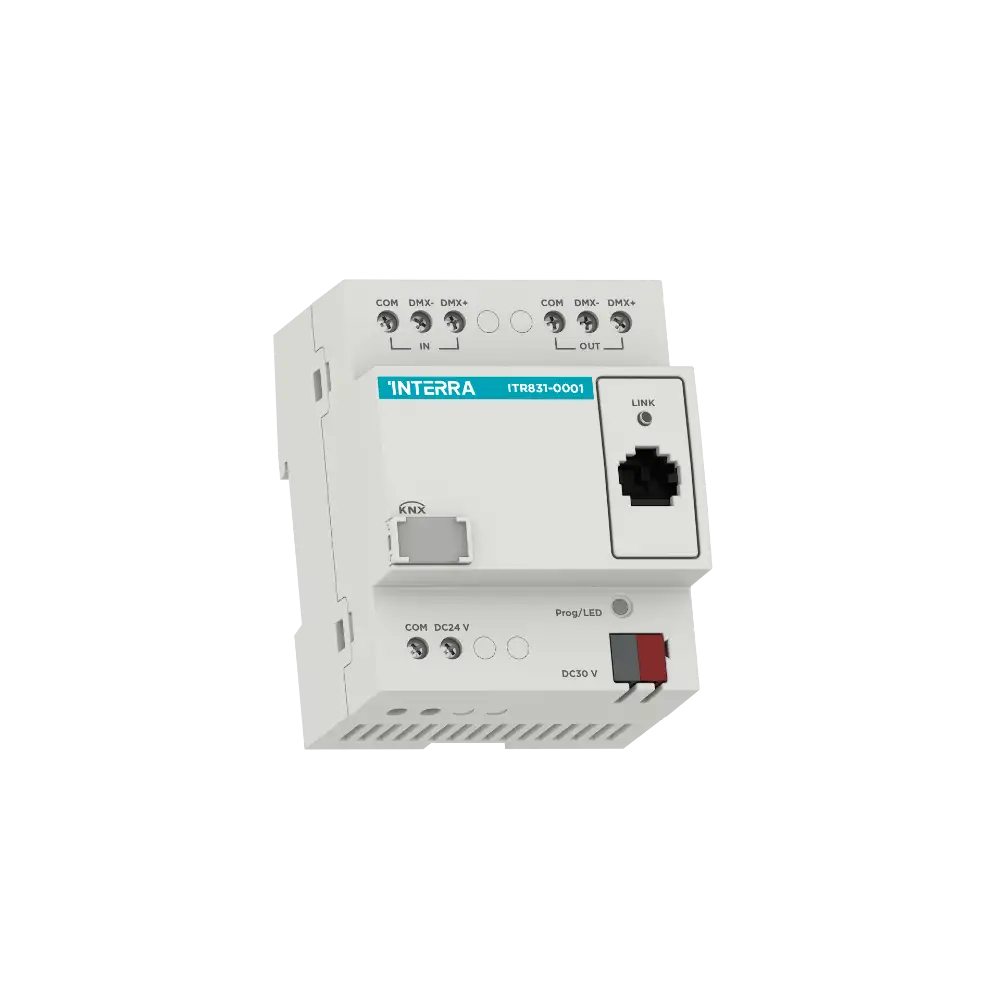

ITR831-0001 - Interra KNX - DMX Gateway supports two-way control and can record, play and delete DMX programs. With recording times of up to 4 hours, the Interra KNX - DMX Gateway can be widely used to control devices with a built-in DMX protocol port for LED color control, such as computer light, moving head light, laser light, etc.
Main functions:
• 3 working modes: DMX recorder mode, DMX dimming mode (EIB to DMX) and DMX to EIB conversion mode (1 bit, 1 byte data point).
• Supported communication signal: DMX512-1990, ArtNet DMX
• Storage and playback of up to 24 programs, maximum recording time: 4 hours
• The DMX recorder mode supports switching and dimming of up to 48 channels, i.e. control of the DMX device via the KNX system.
• DMX to EIB conversion mode supports switching and absolute dimming via DMX signal for up to 48 channels, i.e. control of the KNX system via the DMX memory control function.
• The DMX output signal can be used to control devices with a built-in DMX protocol port for LED color control, such as computer light, moving head light, laser light, etc.
• DMX input control functions for the KNX system include sequence control, scene control, switch control, relative dimming and absolute dimming.
